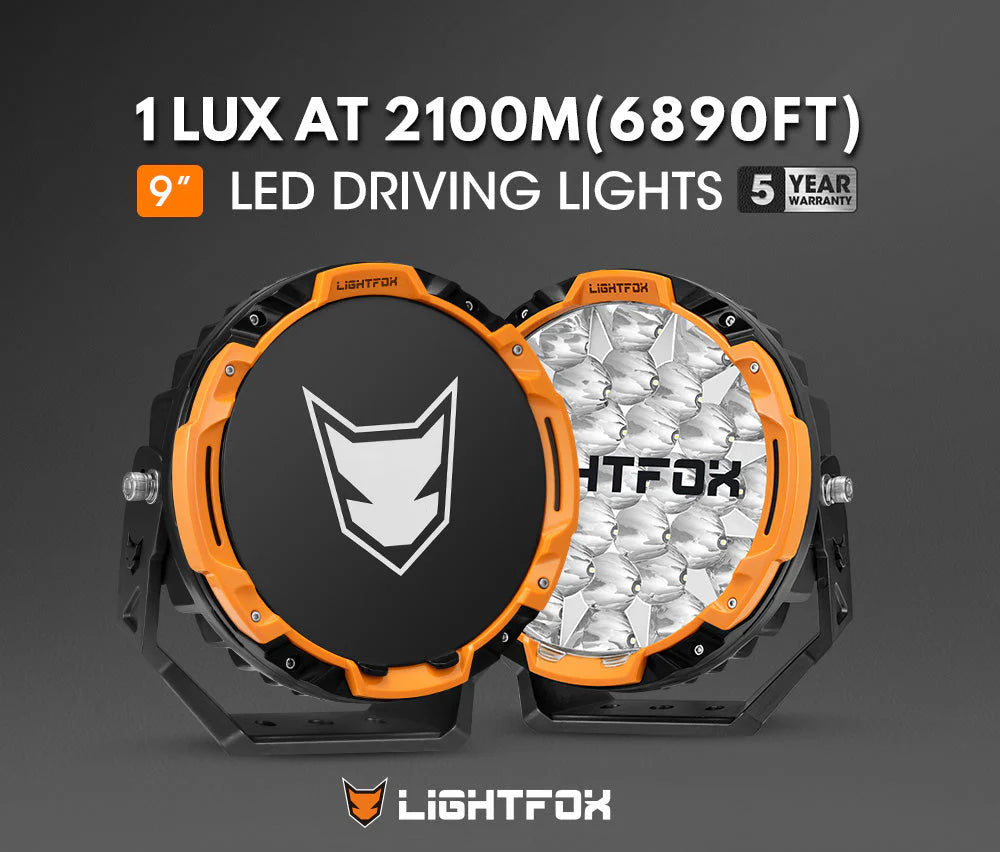

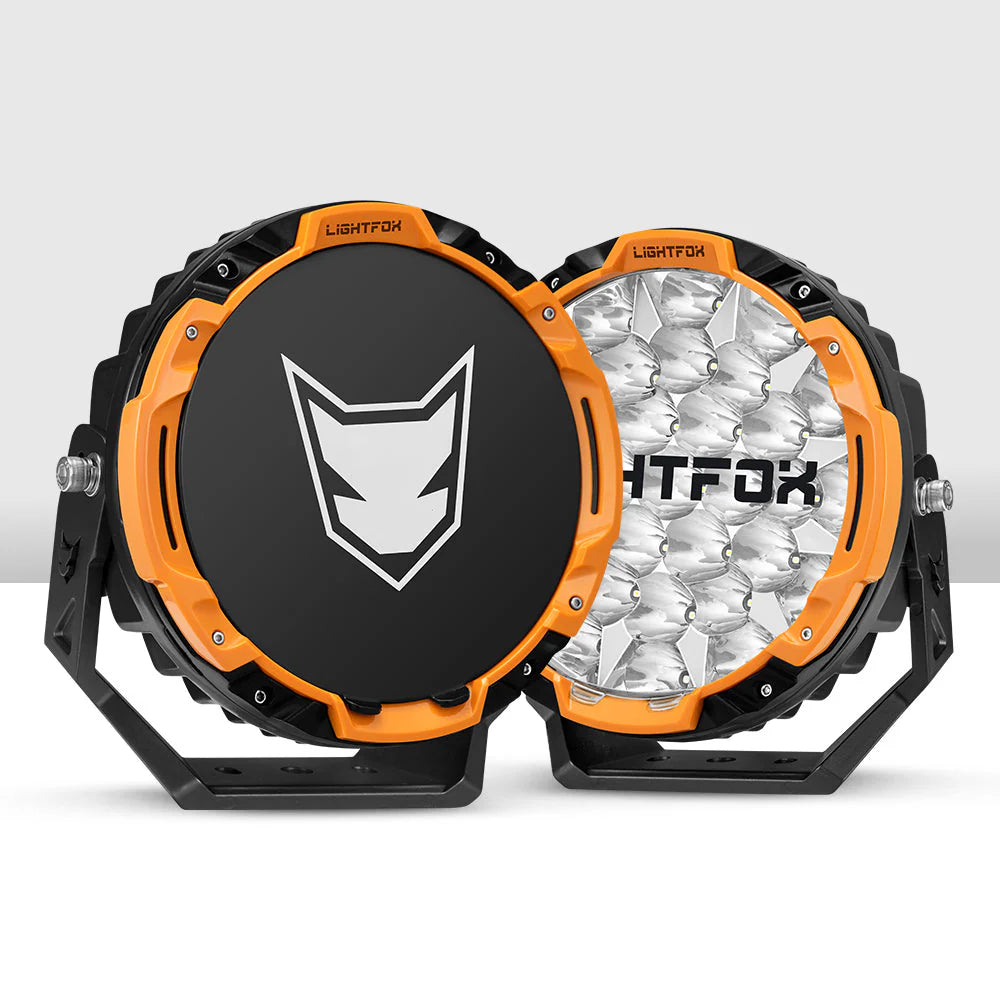

Lightfox 9 inch LED Driving Light Spot Beam Pair (16,342 Lumens, 1 Lux @ 6,890ft/2,100m IP68)
Lightfox 9 inch LED Driving Light Spot Beam Pair (16,342 Lumens, 1 Lux @ 6,890ft/2,100m IP68)
In stock
Lead Time: 2-5 Business Days
Couldn't load pickup availability
The Lightfox 9" LED Driving Lights are built for extreme off-road performance and styled for modern 4x4 rigs. Delivering an exceptional 16,342 raw lumens and a 1 Lux@2,100 m (6,890ft) reach per pair, these lights are ideal for high-speed trails, long-distance driving, and rugged overland expeditions across South Africa.

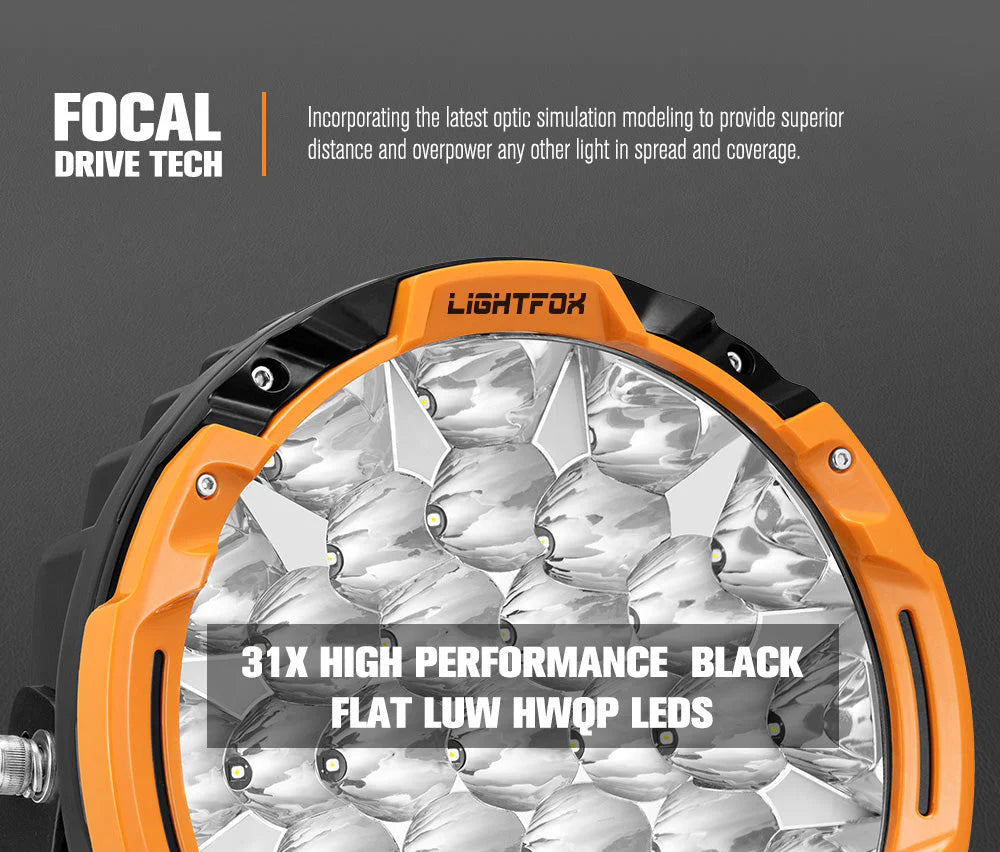

- Focal Drive Tech – Advanced optic simulation ensures minimal light loss and highly efficient long-distance projection
- Extreme Output – Generates a massive 16,342 lumens with a 1Lux beam distance of 2,100m (pair)

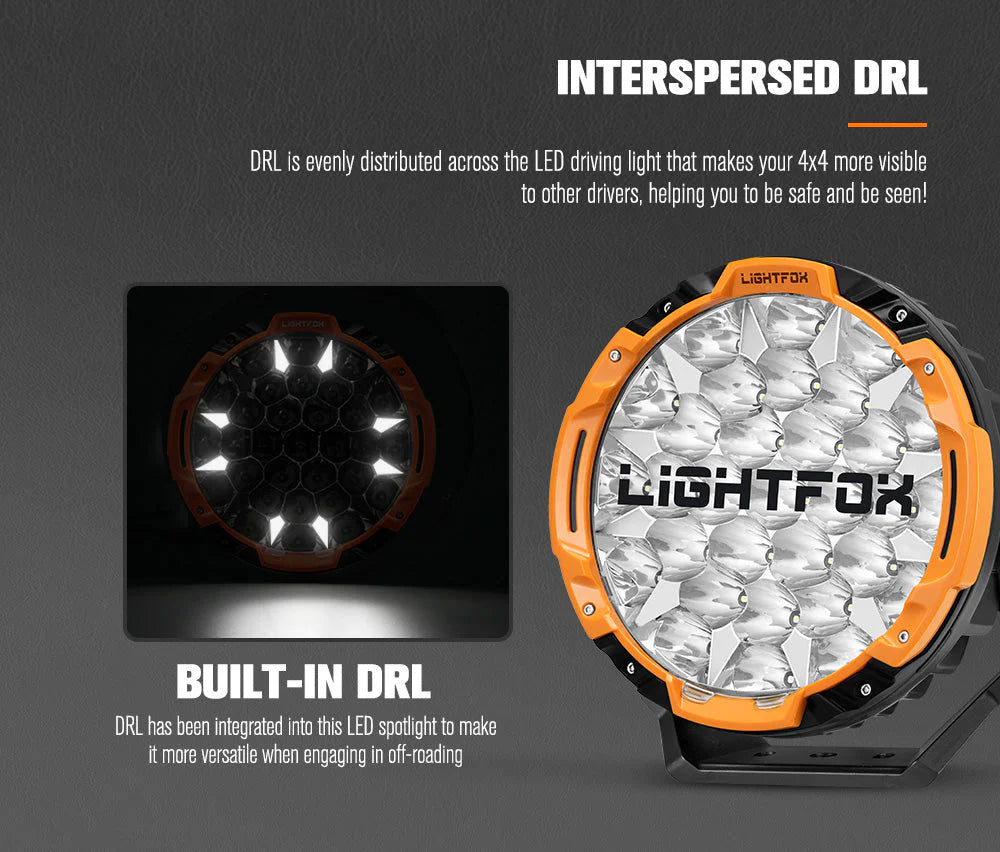

- Integrated DRL – Interspersed Daytime Running Lights (DRL) enhance daytime visibility and safety
- Pure Visual Clarity – 5,700K colour temperature offers daylight-like clarity with reduced eye fatigue
- Customisable Styling – Includes black, yellow, and grey colour-changing trim rings to match your vehicle

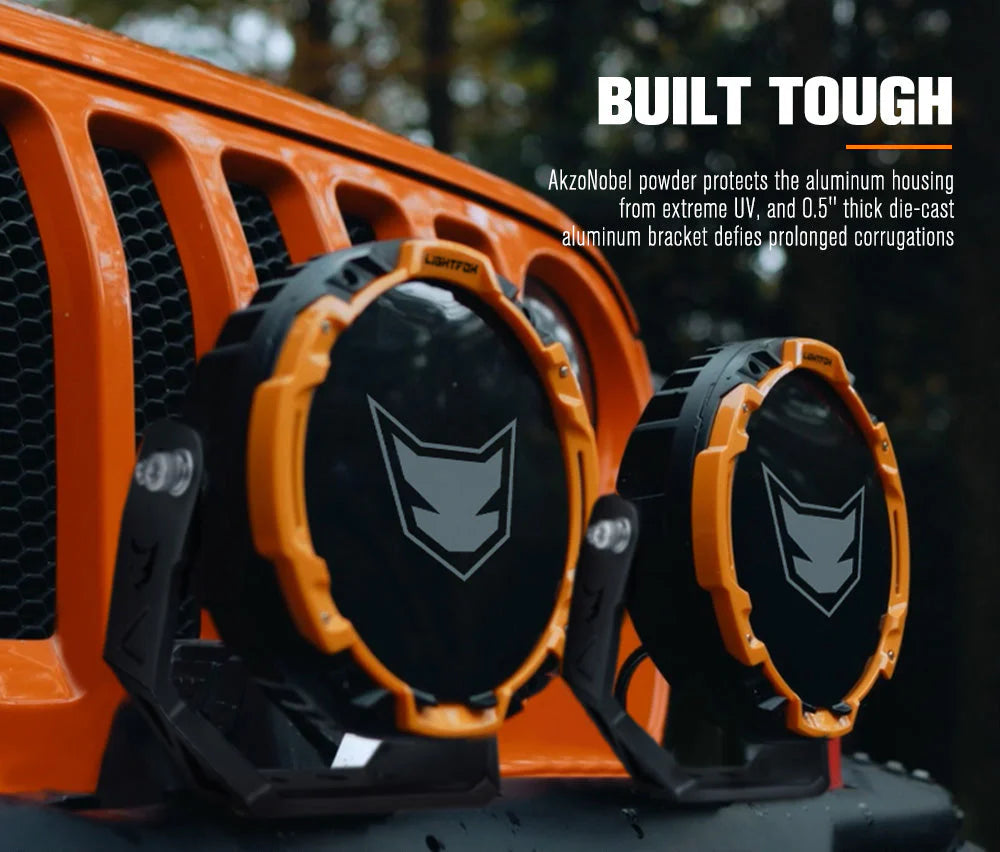

- Built to Endure – Aluminium housing, AkzoNobel anti-corrosion powder coat, strengthened PC lens, and IP68 waterproof sealing

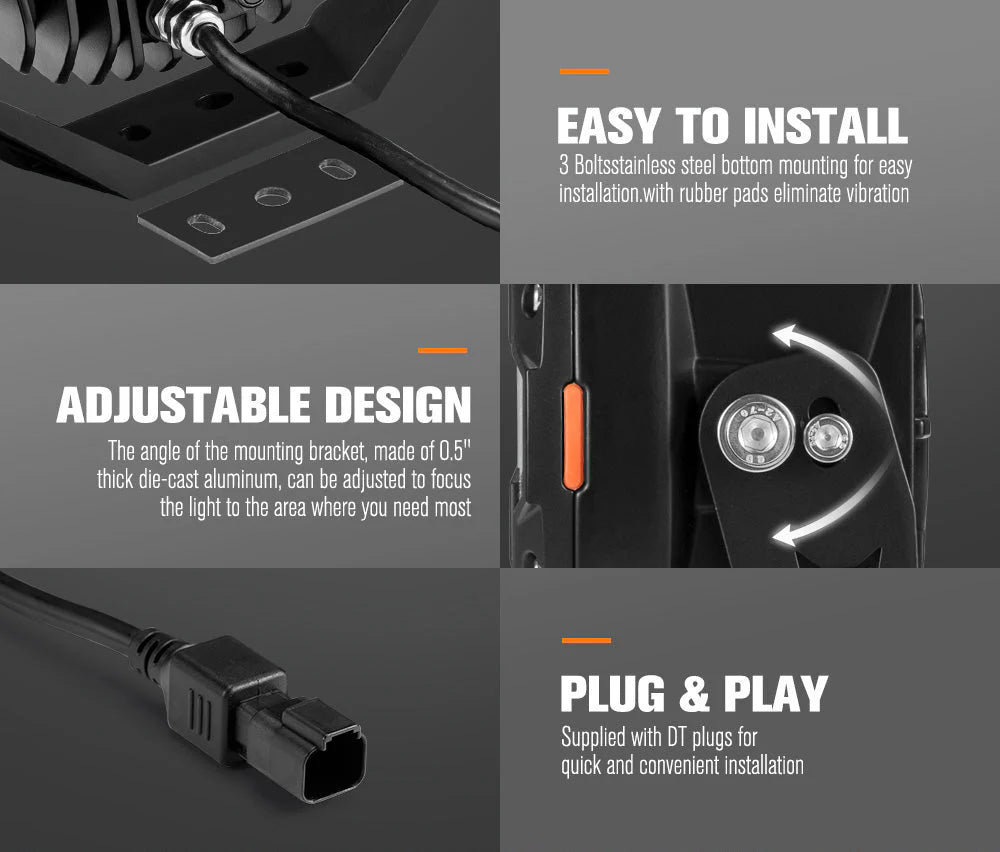

- Heavy-Duty Mounting – 0.5" thick die-cast aluminium brackets resist vibration, rust, and impact
- Thermal Management – Enlarged heat sinks ensure efficient cooling and prevent overheating
- Easy Fitment – Comes complete with a wiring harness, DT plugs, and switch for simple installation
Perfect for Hilux, Ranger, Amarok, or Cruiser builds, the Lightfox 9" LED Driving Lights give you next-level illumination for cross-country trips, Karoo night drives, or remote bush missions.
Package Includes:
- 1 Pair of Lightfox 9" LED Driving Lights
- 2 x Clear Protective Covers
- 2 x Blackout Protective Covers
- 6 x Colour Changing Trim Rings (2x Grey, 2x Yellow, 2x Black)
- 2 x Rubber Pads
- Set of Mounting Kit
- 1 x Complete Wiring Harness with DT Plugs & Switch
- 1 x User Manual
Warranty:
5-Year Manufacturer’s Warranty
Spec Sheet
Bulb Type: | High-performance LEDs |
Theoretical Output: | 310W (pair) |
Raw Lumens: | 16,342 (pair) |

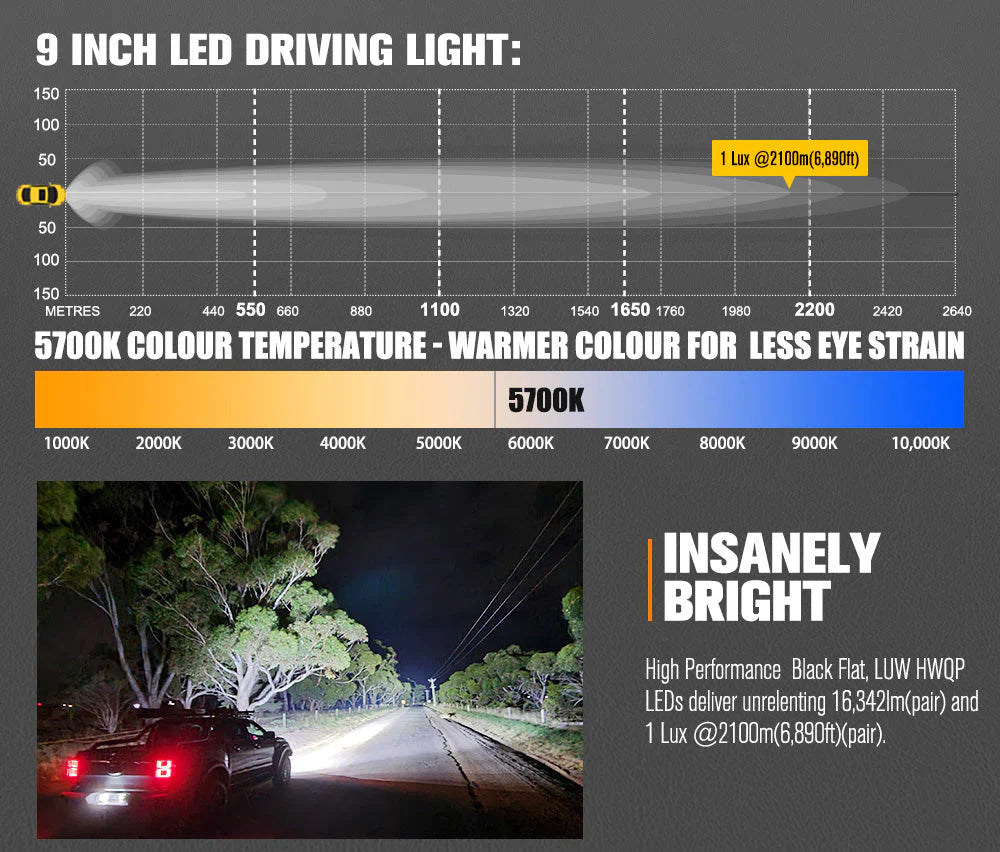

Lux Rating: | 1Lux@2,100m (6,890ft) (pair) |
Colour Temperature: | 5,700K |
Reflector Configuration: | 31 Spot LEDs per light |
Beam Angle: | 12° Spot Beam |
DRL: | Integrated Interspersed DRL |
Vision Tech: | Focal Drive Tech (Optic Simulation Modelling) |
Voltage Range: | 12V – 30V |
Amp Draw: | 22A @ 12V (pair) |
Housing: | Aluminium |
Coating: | AkzoNobel Powder Coating |
Lens: | Strengthened Polycarbonate (PC) |
Sealing Material: | Silicone |
Bracket: | Die-cast Aluminium (0.5" thick) |
Waterproof Rating: | IP68 Rated |
Relative Light Intensity: | 78% @ 302°F (150°C) |
Expected Lifespan: | 50,000 Hours |
Operating Temp: | -40°F to 302°F |

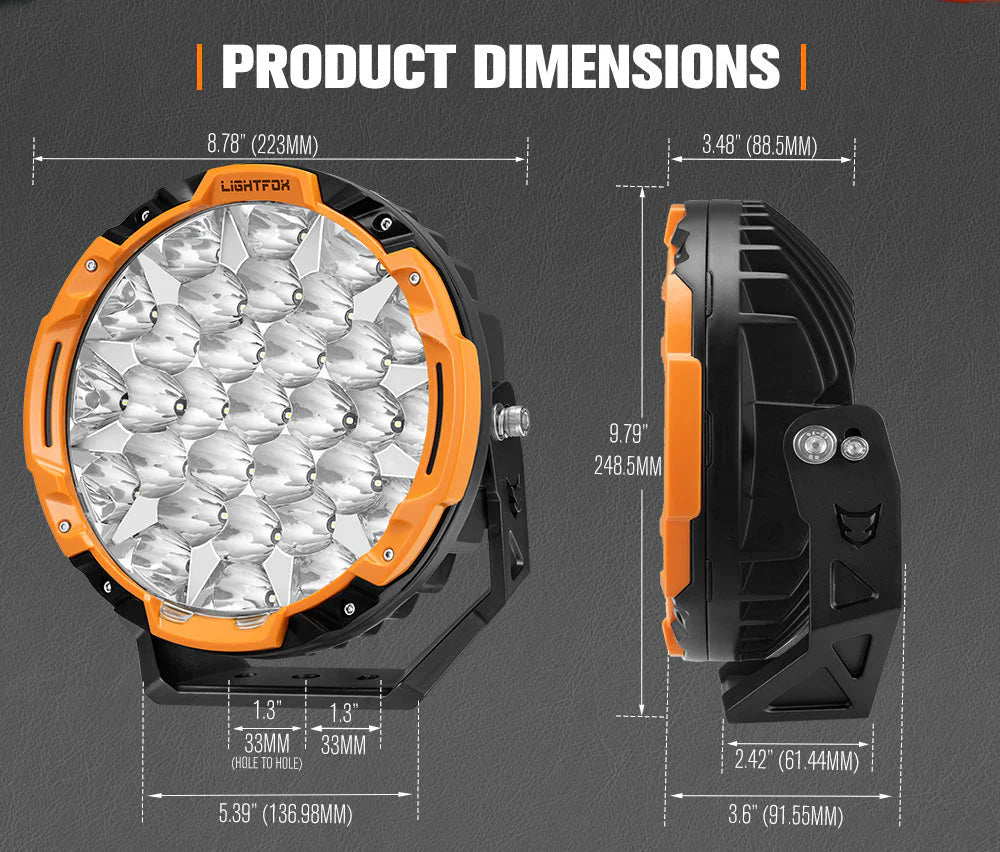

Product Dimensions (with Bracket): | 9.79 x 8.78 x 3.60 in (LxWxH) |
Package Dimensions: | 20.47 x 13.39 x 8.27 in |
Package Weight: | 18.17lb |
